• Country
• Great Britain (UK)

• Manufacturer / Brand
• ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219116

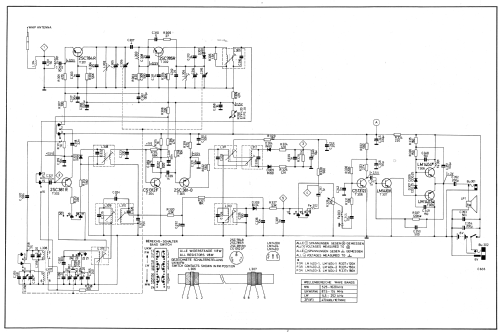

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6; 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ITT Colt [early] - ITT-KB; Foots Cray, Kent; ITT

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 206 x 115 x 47 mm / 8.1 x 4.5 x 1.9 inch

• Notes

• This ITT Colt is an earlier version of the ITT Colt, it also looks very similar to the ITT Schaub Lorenz Junior Automatic 103 except the Junior Automatic 103 is MW & FM only.

  See also the Boots Audio TR600

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.

• Other Models

• Here you find 181 models, 152 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
