• Country
• Great Britain (UK)

• Manufacturer / Brand
• ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

• Year
• 1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 246063

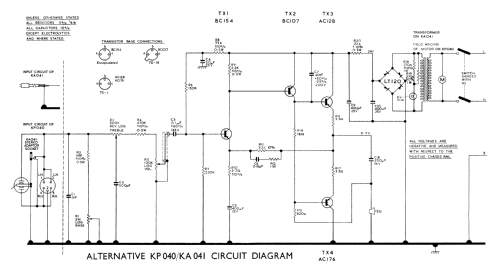

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BC154 BC107 AC128 AC176

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Power out
• 3.5 W (max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

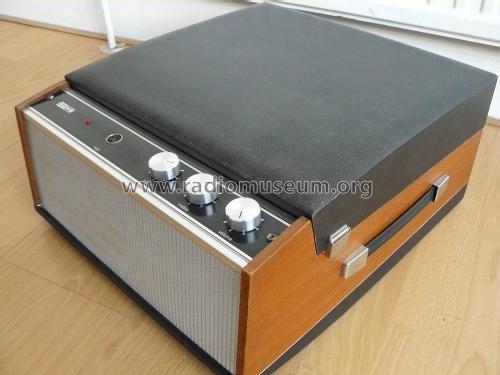

• Model: KP040 - ITT-KB; Foots Cray, Kent; ITT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 404 x 198 x 444 mm / 15.9 x 7.8 x 17.5 inch

• Notes

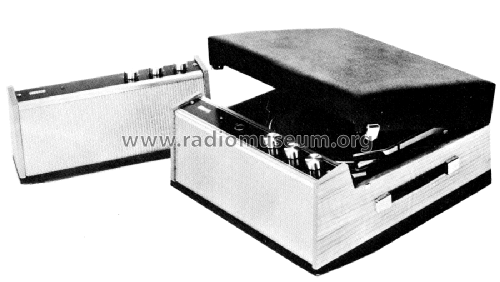

• This record player can be converted to stereo operation with the addition of the KB general purpose amplifier KA041



• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
