• Year
  • 1975 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 261705

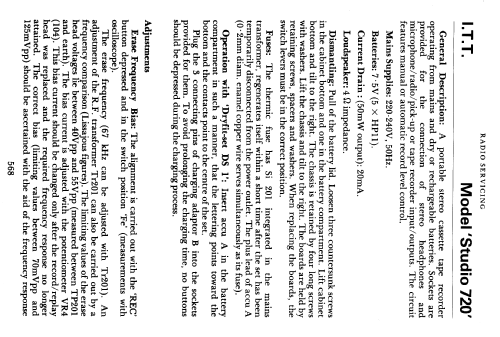

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 26
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110-130; 220-240 / 5 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Studio Recorder 720 Stereo - ITT-KB; Foots Cray, Kent; ITT
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • 5 pin 360 deg. DIN "Domino" headphones socket, 5 pin 180 deg. DIN socket for record and playback.

    See also ITT-Schaub Lorenz Studio Recorder 720 Stereo.

    Made in Taiwan.
