• Country
• Great Britain (UK)

• Manufacturer / Brand
• ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

• Year
• 1969 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 263004

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC535 2SC461 2SC460 2SC460 2SC460 2SC454 2SB75 2SB156 2SB156

• Main principle
• Superheterodyne (common); ZF/IF 458/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

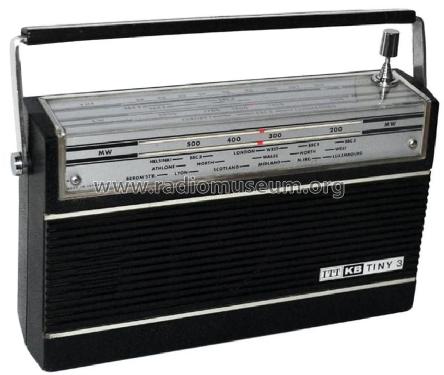

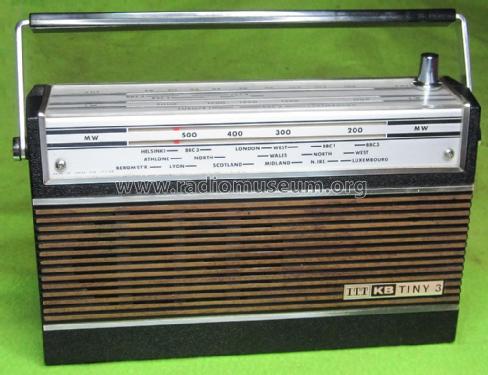

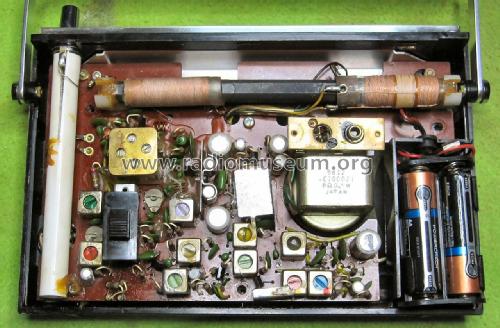

• Model: Tiny 3 - ITT-KB; Foots Cray, Kent; ITT

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 197 x 123 x 54 mm / 7.8 x 4.8 x 2.1 inch

• Notes

• FM: 87,5 - 104 MHz
  MW: 515 - 1620 kHz
  LW: 145 - 265 kHz

  See also ITT Schaub-Lorenz Tiny 3  LW

  and ITT Schaub-Lorenz Tiny 3  SW

  Made in Japan

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
