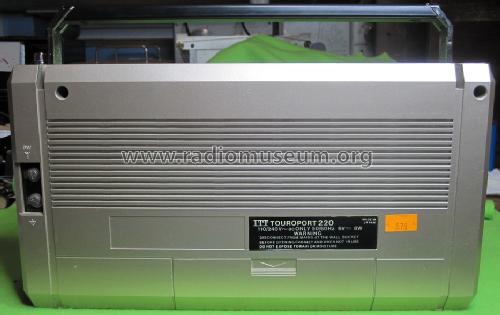

Touroport 220

ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

Data
Forum
Pictures
Collections

  • Year
  • 1983 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 231731

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110/250 and 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Touroport 220 - ITT-KB; Foots Cray, Kent; ITT
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 50 x 155 mm / 11 x 2 x 6.1 inch
  • Notes

  • On FM the tuner goes in 50kHz steps and on AM 1kHz steps on LW and 9KHz steps on MW. Shortwave coverage is continuous from 2.3 to 21.35MHz in 5kHz steps (120 to 11 meters).

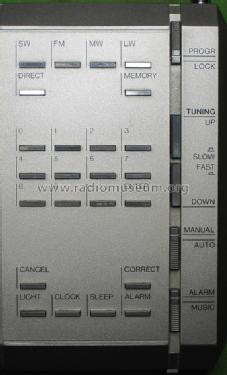

    Digital readout, direct frequency entry by keypad, manual/auto sweep tune, 10 memories, clock/timer with alarm, 3 position tone switch. Connections on back for SW aerial and earth.

    2 x 1.5v AA auxiliary batteries for memory and clock functions.



    See also ITT Schaub-Lorenz Touroport 220 for circuit diagram
