• Country
• Japan

• Manufacturer / Brand
• Iwatsu Test Instruments Corp.; Suginami-ku, Tokyo

• Year
• 1983 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 215043

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-120; 200-240; Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

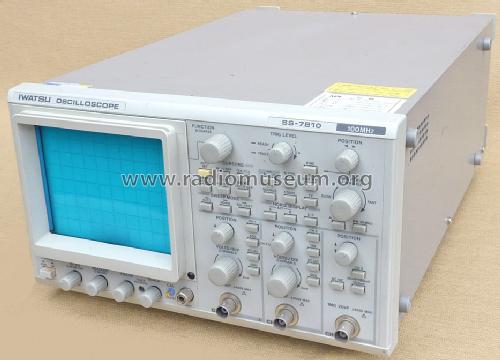

• Model: Oscilloscope SS-7810 - Iwatsu Test Instruments Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 272 x 152 x 390 mm / 10.7 x 6 x 15.4 inch

• Notes
• Iwatsu Oscilloscope SS-7810;
  DC-100 MHz, 3 channel 8 traces.
  Ch1, Ch2 sensitivity: 2 mV/div-50 mV/div. 1-2-5 sequence in 11 steps.
  Ch3 sensitivity: 50 mV, 100 mV, 500 mV/div.
  Sweep rate: 10 ns/div-500 ms/div. 1-2-5 sequence in 24 steps.
  Curser readout function. 5 digit frequency counter.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Author
• Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
