60 cathedral
Jackson-Bell Co. (pre 1935); Los Angeles
- Country
- United States of America (USA)
- Manufacturer / Brand
- Jackson-Bell Co. (pre 1935); Los Angeles
- Year
- 1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190637

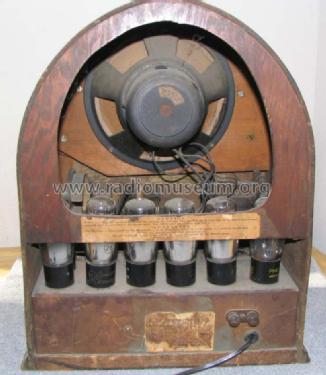

By courtesy of "Great old Radios.com"
By courtesy of "Great old Radios.com"
By courtesy of "Great old Radios.com"
By courtesy of "Great old Radios.com"
By courtesy of "Great old Radios.com"
By courtesy of "Great old Radios.com"
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF with regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 60 [cathedral] - Jackson-Bell Co. pre 1935; Los
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
- Push-pull af output stage. The Chassis was produced by Gilfillan.
The cabinet is according to the Jackson-Bell US design patent 82,773.
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Los Angeles Radio Manufacturing,Floyd A.Paul, p.39/40
