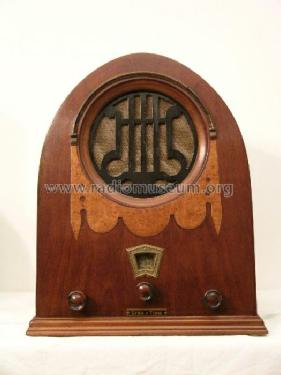

Lyra-Tone 62
Jackson-Bell Co. (pre 1935); Los Angeles
- Country
- United States of America (USA)
- Manufacturer / Brand
- Jackson-Bell Co. (pre 1935); Los Angeles
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137779
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF without regeneration
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Lyra-Tone 62 - Jackson-Bell Co. pre 1935; Los
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 300 x 400 x 200 mm / 11.8 x 15.7 x 7.9 inch
- Notes
-
Volume adjustment between the antenna and the cathode resistance of the first tube. Tone control.
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (2)
- -- Original prospect or advert (La Radio per Tutti maggio 1931)
- Author
- Model page created by Luca Posca. See "Data change" for further contributors.
- Other Models
-
Here you find 83 models, 36 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Jackson-Bell Co. (pre 1935); Los Angeles
