• Country
• United States of America (USA)

• Manufacturer / Brand
• Jackson (The) Electrical Instrument CO., Dayton

• Year
• 1948 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 323353

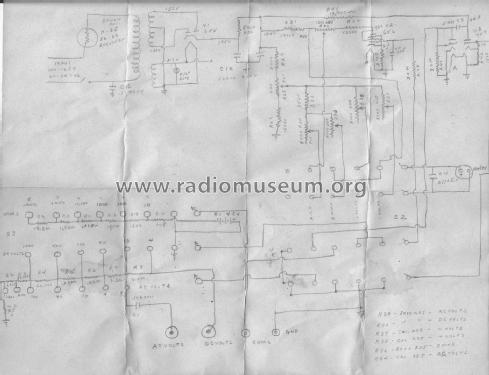

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6X5 6K6 7N7

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50 - 60 Hz; 100 - 125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: VTVM 109 - Jackson The Electrical

• Shape
• Tablemodel, with any shape - general.

• Author
• Model page created by Joe Clark. See "Data change" for further contributors.
