- Country
- United States of America (USA)
- Manufacturer / Brand
- Jackson Industries
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 347603
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6CB6 or 6AG5 or 6BC5 6J6 6AG5 6AG5 6AU6 6AL5 6AC7 12AU7 6AU6 6T8 6V6GT 6SN7GT 6K6GT 6AL5 6SN7GT 6BG6G or 6CD6G 6W4GT 1X2 5U4G 12LP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: 12T - Jackson Industries
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Jackson model 12T is a 12” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF tuner 214-130 and picture tube 12LP4A.
- Literature/Schematics (1)

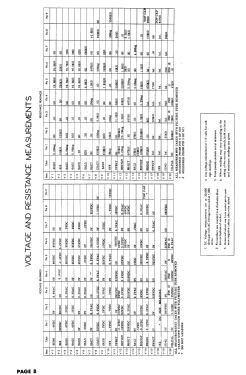

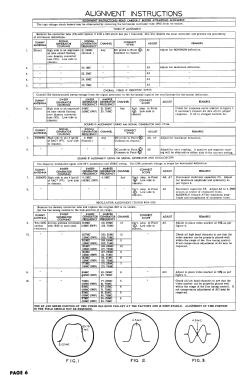

- Photofact Folder, Howard W. SAMS (set 132, folder 8, dated 5-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 61 models, 16 with images and 58 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Jackson Industries
