JP-300 Ch= AP3U
Jackson Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Jackson Industries
- Year
- 1952 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 45178

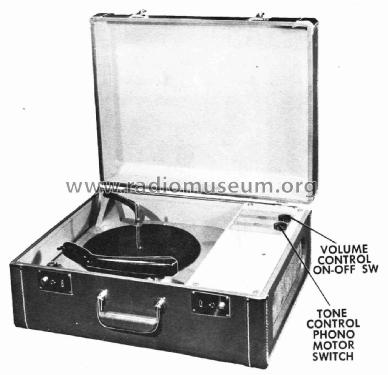

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: JP-300 Ch= AP3U - Jackson Industries
- Notes
-
Jackson model JP-300 is an AC operated audio amplifier with 3 speed automatic record changer.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 174, folder 7, dated 7-52)
