• Country
• United States of America (USA)

• Manufacturer / Brand
• Jackson (The) Electrical Instrument CO., Dayton

• Year
• 1951

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 97591

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

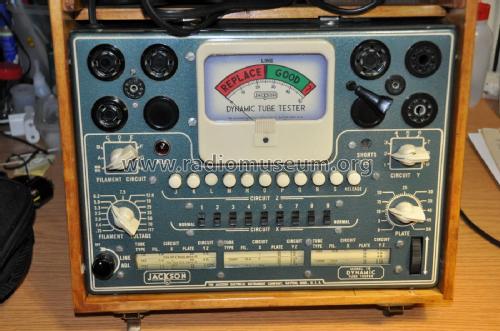

• Model: 115 Tube Tester - Jackson The Electrical

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 13 x 9.5 x 5.5 inch / 330 x 241 x 140 mm

• Notes
• Large 4" square meter.

• Price in first year of sale
• 68.00 $

• Literature/Schematics (1)
• 1951 Newark catalog Nº 51

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
