• Country
• United States of America (USA)

• Manufacturer / Brand
• Jackson (The) Electrical Instrument CO., Dayton

• Year
• 1938

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 95974

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

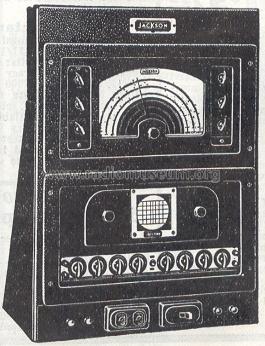

• Model: 601 Visuline Lab. Radio Alignment Set - Jackson The Electrical

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 20 x 27 x 0 inch / 508 x 686 x 0 mm

• Notes
• Complete Alignment Laboratory consisting of Signal Generator #420 and 3"Oscilloscope #523.

• Price in first year of sale
• 124.00 $

• Literature/Schematics (1)
• 1938 Radolek Catalog

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
