• Country
• Italy

• Manufacturer / Brand
• Jaka; (where?)

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213745

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 or 6AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

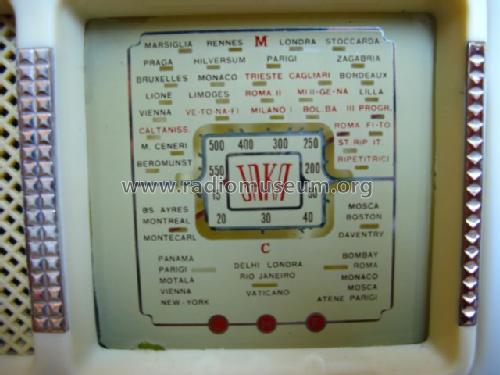

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2.5 W (unknown quality)

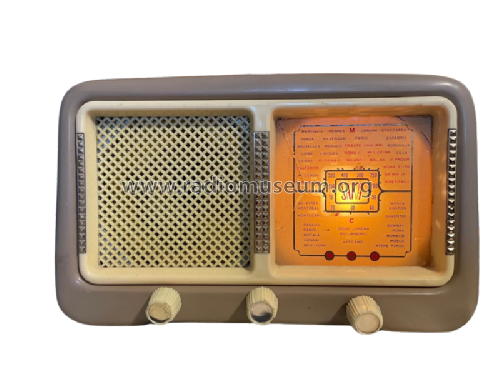

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 5 Valvole - Jaka; where?

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 160 x 140 mm / 9.8 x 6.3 x 5.5 inch

• Notes

• Apparentemente identico alla Sicart A56.

  Radio di produzione italiana dei primi anni 50, alimentata da corrente alternata con autorasformatore.
  Costruzione molto semplice e con pochi componenti per mantenere i costi bassi.

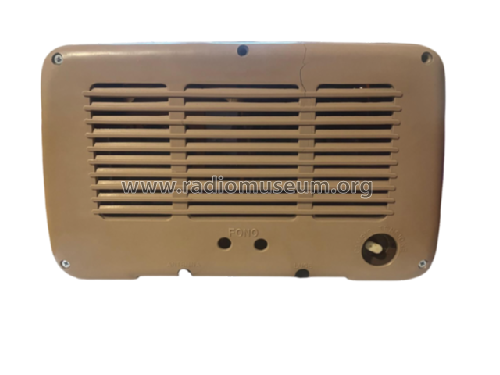

  2 gamme di frequenza piu possibilità di collegare un fonografo.

  Attenzione autotrasformatore, nessuna disconnessione di rete.

  ---

  Metal parts of this device may be energized with the full power supply voltage, even when turned off. Electrical shock, and even death through contact can occur. Only few of the model pages on this site carry this warning! Only a trained person should plug in old electrical sets.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Ernst Röggla. See "Data change" for further contributors.
