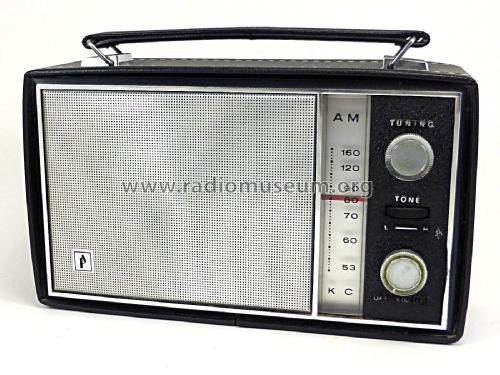

7 Transistor 1641 (Japan 501)

JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 306273

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Batteries / addl. power jack / C: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.3 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

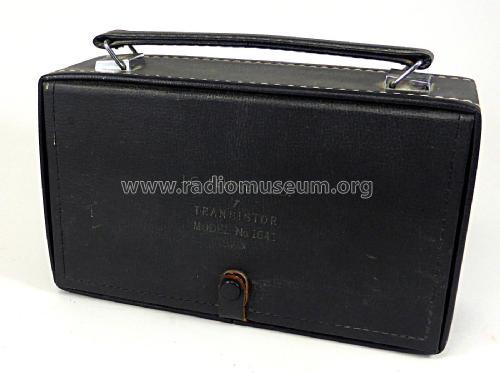

  • Model: 7 Transistor 1641 - JCPenney, Penney's, J.C.Penney
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 205 x 137 x 74 mm / 8.1 x 5.4 x 2.9 inch
  • Notes

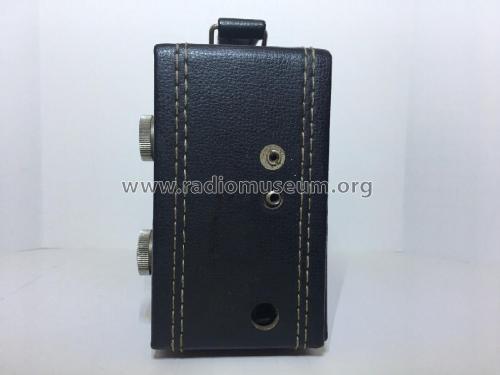

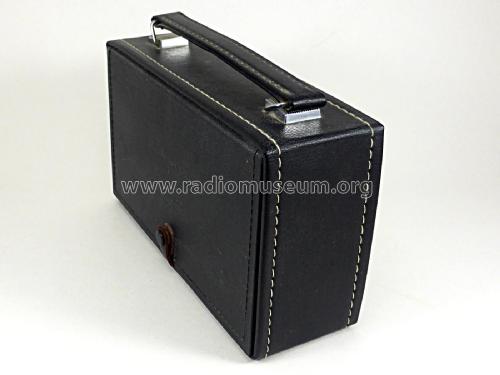

  • Equipped with battery tubes and an earphone. Has jack for external 6V power.  Vinyl plastic case and handle.

    Made in Japan

  • Mentioned in
  • JCPenney 1965 Christmas Cat., p. 169.  Cat. No.: 850-1991
  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
