• Year
  • 1976 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 304595

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

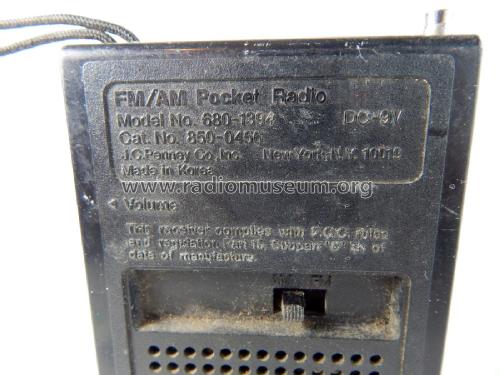

  • Model: FM/AM Pocket Radio 680-1394 - JCPenney, Penney's, J.C.Penney
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 86 x 135 x 43 mm / 3.4 x 5.3 x 1.7 inch
  • Notes

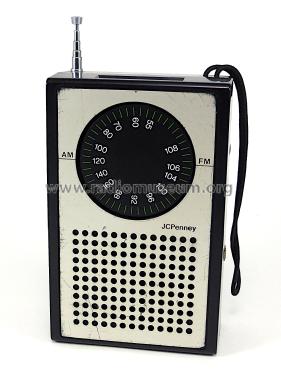

  • Telescoping FM antenna.  AM/FM band selector in back. Black plastic cabinet with simulated aluminum front.  Wrist strap.

    Made in Korea

  • Mentioned in
  • -- Original prospect or advert (JC Penney 1977 Christmas catalog, page 519)
  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
