FM/AM Radio Cassette 3405 (Catalog No. 851-1150)

JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY

Data
Forum
Pictures
Collections

  • Year
  • 1979 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 343734

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120 / DC 9V / D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/AM Radio Cassette 3405 - JCPenney, Penney's, J.C.Penney
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 327 x 242 x 106 mm / 12.9 x 9.5 x 4.2 inch
  • Notes

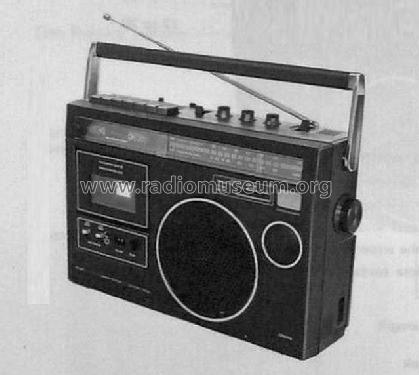

  • Portable FM/AM Radio Cassette with Auto Reverse Model JCPenney 3405 (Catalog No. 851-1150)

    FM 88 - 108 MHz
    AM 520 - 1605 kHz

    Standard Cassette Tape, 4,8cm/sec
    100 - 8000 Hz
    Auto Reverse

    Speakers:
    Woofer 160mm - 8 Ohms
    Tweeter  50mm - 8 Ohms

    Carrying Handle

    Telescopic antenna






  • Net weight (2.2 lb = 1 kg)
  • 3.9 kg / 8 lb 9.4 oz (8.59 lb)
  • Mentioned in
  • - - Manufacturers Literature (JCPenney Technical Service Data - Form No. TR-121 August 1979)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
