• Country
• United States of America (USA)

• Manufacturer / Brand
• JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276768

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 70 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: MCS Series Stereo Receiver 683-3237 Cat-No.: 853-5718 - JCPenney, Penney's, J.C.Penney

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 110 x 250 mm / 16.9 x 4.3 x 9.8 inch

• Notes

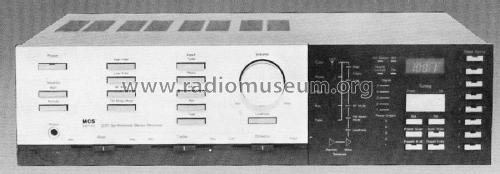

• JCPenney MCS^TM Series Modular Componet Systems AM/FM Stereo Reciever Model 683-3237.
  2x 35 Watts RMS into 8 Ohms, 20-20000Hz, THD 0,04%
  1x Unswitched AC-Outlet
  Filter: Low (50Hz -9dB), High (10000Hz -9dB)
  Loudness
  Inputs Phono1, Video, AUX
  Tape Dubbing, Tape Monitor
  Tuning Range:
  FM 88 - 108 MHz
  AM 550 - 1600kHz
  Power Consumption 97 Watts







• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• - - Manufacturers Literature (Owners Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
