UHF/VHF/FM Cable TV Amplifier EU-3651A
Jebsee Electronics Co. Ltd.; Tainan
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- Jebsee Electronics Co. Ltd.; Tainan
- Year
- 2010 ??
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 356757
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz 230 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: UHF/VHF/FM Cable TV Amplifier EU-3651A - Jebsee Electronics Co. Ltd.;
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 110 x 80 x 34 mm / 4.3 x 3.1 x 1.3 inch
- Notes
-

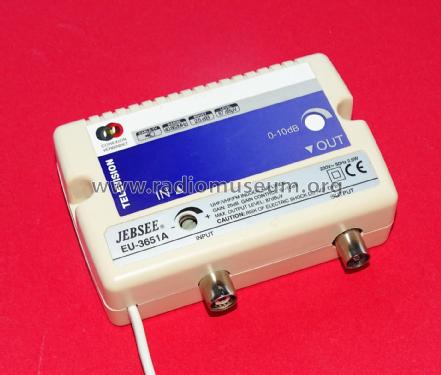

The Jebsee Model EU-3651A is an AC mains-powered indoor cable amplifier for VHF and UHF TV or VHF FM radio signals.
Frequency range 40 - 862 MHz
Gain 25 dB
Gain control range 0-10 dB
Maximum output level 87 dBµV
Female Belling & Lee type coax socket for input, male socket for output
Power consumption 2.5 W at 230 V
Adhesive labels indicate European distributor Conexion GmbH, D-63776 Mömbris.
- Net weight (2.2 lb = 1 kg)
- 0.290 kg / 0 lb 10.2 oz (0.639 lb)
- Author
- Model page created by Bruce Taylor. See "Data change" for further contributors.
