Jemakit Signal Tracer - Analizador Electrónico ST-2
Jema Radio Laboratorio Electrónica; (¿donde?)
- Country
- Spain
- Manufacturer / Brand
- Jema Radio Laboratorio Electrónica; (¿donde?)
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 354794
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Jemakit Signal Tracer - Analizador Electrónico ST-2 - Jema Radio Laboratorio
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 170 x 250 x 155 mm / 6.7 x 9.8 x 6.1 inch
- Notes
-

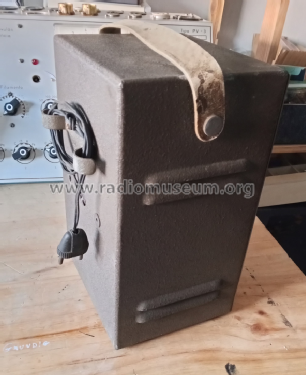

Jemakit Signal Tracer ST-2, for RF and AF signals. Demodulated output via internal loudspeaker or external connector.
- Author
- Model page created by Jose Ignacio Gomez Ruiz. See "Data change" for further contributors.
