• Country
• United States of America (USA)

• Manufacturer / Brand
• Jensen Radio Manufacturing Co.; Chicago, IL, Oakland, CA

• Year
• 1930 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 156534

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

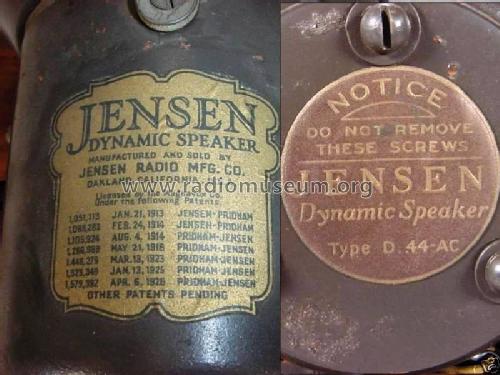

• Model: D 44-AC - Jensen Radio Manufacturing Co.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13 x 13.5 x 10 inch / 330 x 343 x 254 mm

• Notes
• Tombstone-like cabinet with pressed wood designs. Speaker with field power supply; Metal (dry) rectifier.

• Net weight (2.2 lb = 1 kg)
• 9.988 kg / 22 lb 0 oz (22 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.

• Other Models

• Here you find 64 models, 61 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
