• Country
• United States of America (USA)

• Manufacturer / Brand
• Jensen Radio Manufacturing Co.; Chicago, IL, Oakland, CA

• Year
• 1956

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 123408

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers / Ø 15 inch = 38.1 cm

• Material
• Wooden case

• from Radiomuseum.org

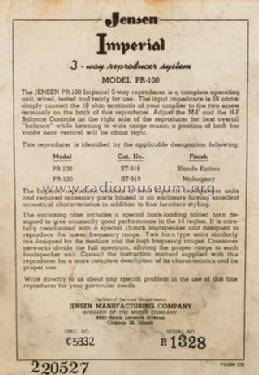

• Model: Imperial PR-100 - Jensen Radio Manufacturing Co.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 32.7 x 53.3 x 24.4 inch / 831 x 1354 x 620 mm

• Notes

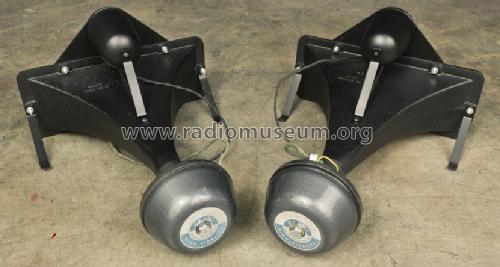

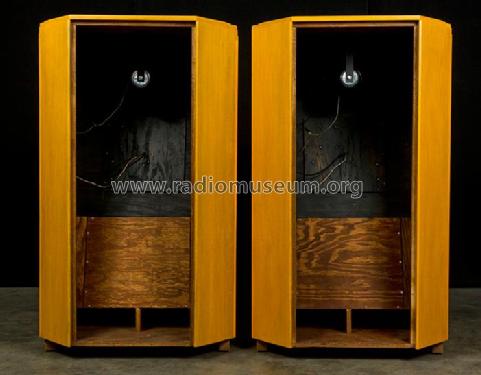

• Luxury version of the famous Lab Standard RS-100  back-loading folded-horn cabinet with 3 speaker units:
  P15-LL L-F unit
  RP-201 H-F unit
  RP-302 Ultra H-F unit

  35W, 16 ohms.
  Options ST-919, mahogany; ST-918, satin korina.

• Net weight (2.2 lb = 1 kg)
• 99 kg / 218 lb 1 oz (218.062 lb)

• Price in first year of sale
• 535.00 $

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• The Radio-Electronic Master Buying Guide, 1956

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
