Q Hi-Range Speaker 3601
Jensen Radio Manufacturing Co.; Chicago, IL, Oakland, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Jensen Radio Manufacturing Co.; Chicago, IL, Oakland, CA
- Year
- 1935 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 290693
- Number of Tubes
- 1
- Valves / Tubes
- 80
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Q Hi-Range Speaker 3601 - Jensen Radio Manufacturing Co.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9.25 x 8.5 x 0 inch / 235 x 216 x 0 mm
- Notes
-

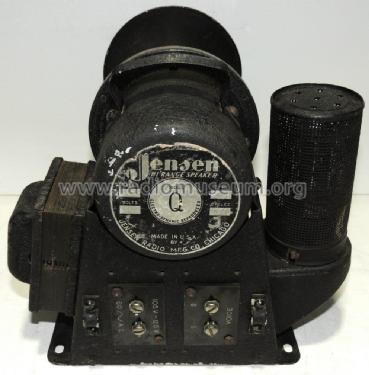

The Jensen model Q horn tweeter Type 3601 contained its own field coil supply utilizing a type 80 rectifier tube.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
