• Country
• United States of America (USA)

• Manufacturer / Brand
• Jensen Radio Manufacturing Co.; Chicago, IL, Oakland, CA

• Year
• 1956

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 123406

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

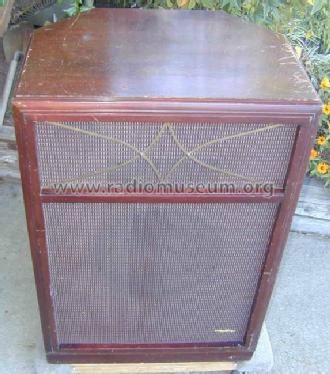

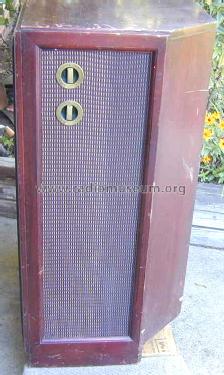

• Model: TRi-Plex Speaker System TP-200 - Jensen Radio Manufacturing Co.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 26 x 38.7 x 19.9 inch / 660 x 983 x 505 mm

• Notes
• Three-way speaker system, incorporating the Ultraflex bass radiator. 35W, 16 ohms.
  Available in korina blonde or mahogany.

• Net weight (2.2 lb = 1 kg)
• 55.5 kg / 122 lb 3.9 oz (122.247 lb)

• Price in first year of sale
• 317.00 $

• Literature/Schematics (1)
• The Radio-Electronic Master Buying Guide, 1956

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
