• Country
• United States of America (USA)

• Manufacturer / Brand
• Jerrold Electronics Corporation, Philadelphia

• Year
• 1959

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 165587

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6BK7B 6BK7B

• Main principle
• Radio Frequency Amplification only

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: HSA-46 - Jerrold Electronics

• Shape
• Chassis only or for «building in»

• Notes

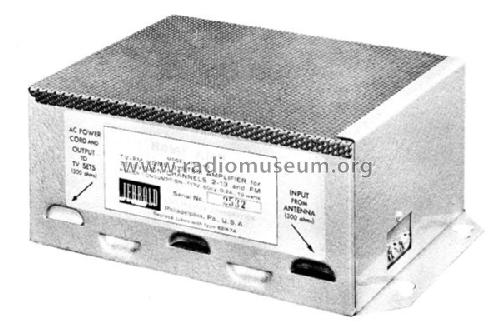

• The Jerrold Model HSA-46 is an AC operated 2 Tube TV-FM Home Antenna Distribution Amplifier.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 7)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
