- Country
- United States of America (USA)
- Manufacturer / Brand
- French, Jesse Mfg. Co.; Newcastle, Ind. (Jesse French & Sons Piano Co.)
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 45208

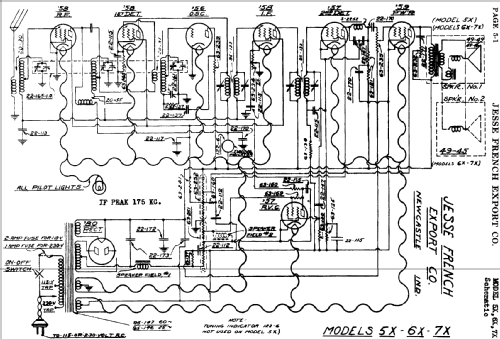

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6X - French, Jesse Mfg. Co.;
- Notes
- The models 5X, 6X and 7X share the same schematic - except that models 6X and 7X have two loudspeakers. This radio model can not be earlier than 1932, because of some tubes used.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Other Models
-
Here you find 26 models, 8 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from French, Jesse Mfg. Co.; Newcastle, Ind. (Jesse French & Sons Piano Co.)
