• Country
• India

• Manufacturer / Brand
• Jeyrad Electronic Industries; Madras

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334428

• Number of Tubes
• 6

• Valves / Tubes
• UCH81 UBF89 UBF89 UL84 DM71 UY85

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

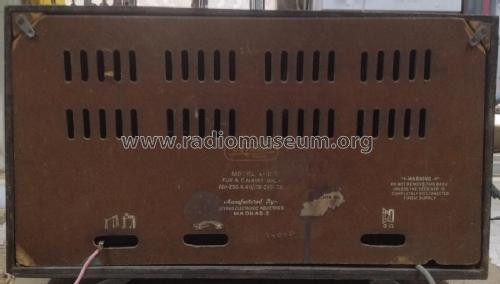

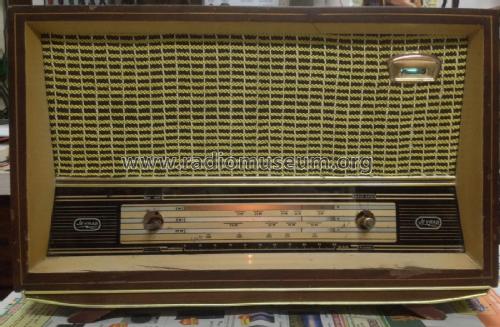

• Model: A-303 - Jeyrad Electronic Industries;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19 x 10 x 8 inch / 483 x 254 x 203 mm

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by Uday Kalburgi. See "Data change" for further contributors.
