• Country
• Canada

• Manufacturer / Brand
• JIL (J.I.L.) Canada Ltd. (Jutan International Ltd.); Toronto

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 260965

• • alternative name: Jutan Importers Limited

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC930 2SC930 2SC929 2SC930 2SC930 2SB186 2SB186 2SB405 2SD72 1S352 1S446

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Strauss FM-AM 2Band Twin Speaker Radio VM-7007 - JIL J.I.L. Canada Ltd. Jutan

• Shape
• Tablemodel, with any shape - general.

• Notes

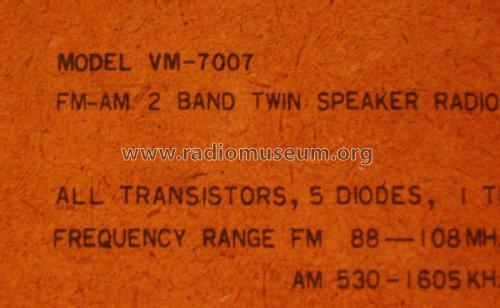

• Strauss Solid State FM-AM 2Band Twin Speaker Radio Model VM-7007.
  Frequency Range: FM 88 - 108 MHz, AM 530 - 1605 kHz
  AFC, Tone Control, Earphone Jack
  Tape IN, OUT
  5 Diodes, 1 Thermistor, 2 Silicon Rectifiers
  Power Consumption 5 Watts.
  Made in Korea - Jutan International Ltd.


• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
