• Country
• Germany

• Manufacturer / Brand
• Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119797

• • alternative name: Elektro-Apparate-Fabrik
  • Brand: EAF

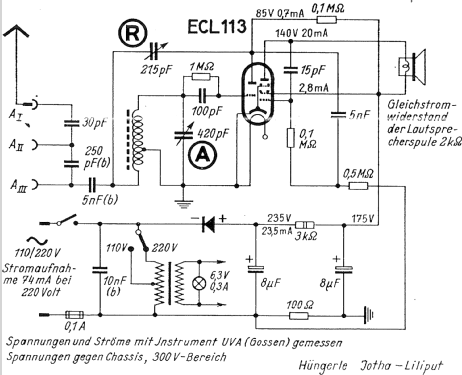

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL113

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 9 cm = 3.5 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Liliput 111W [KW] - Jotha-Radio, El.-App.-Fabrik

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 160 x 135 x 110 mm / 6.3 x 5.3 x 4.3 inch

• Notes
• KW-Bereich 35-135m = 8.6 - 2.2 MHz; Bakelit-Gehäuse blau lackiert. Beleuchtete Glasskala mit Teilung 0...10.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Mentioned in
• Funkgeschichte der GFGF (Nr. 175 - 2007)

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
