• Country
• Germany

• Manufacturer / Brand
• Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15169

• • alternative name: Elektro-Apparate-Fabrik
  • Brand: EAF

• Number of Tubes
• 3

• Valves / Tubes
• UCF12 UEL11 UY2

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

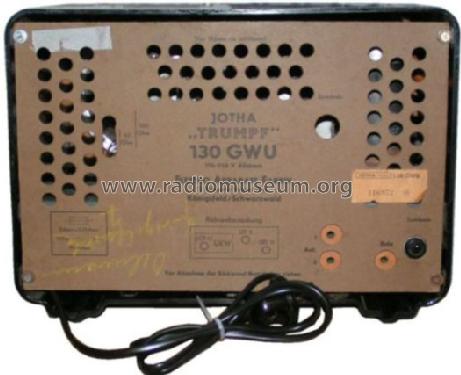

• Model: Trumpf 130GWU - Jotha-Radio, El.-App.-Fabrik

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 315 x 230 x 165 mm / 12.4 x 9.1 x 6.5 inch

• Notes
• Pendelaudion.

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Price in first year of sale
• 112.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb
