• Country
• Germany

• Manufacturer / Brand
• Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80972

• • alternative name: Elektro-Apparate-Fabrik
  • Brand: EAF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCF12 UL41 UY41

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)     2 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

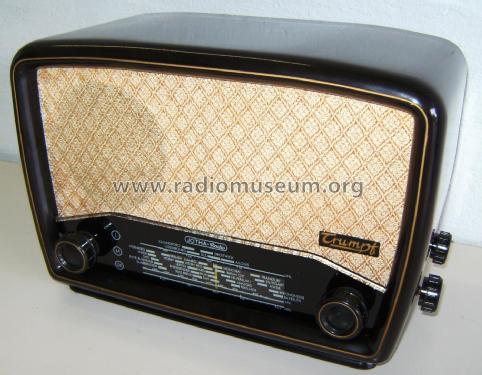

• Model: Trumpf 52 332UGW3 [3 Röhren, bis Nr. 141750] - Jotha-Radio, El.-App.-Fabrik

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 305 x 210 x 160 mm / 12 x 8.3 x 6.3 inch

• Notes

• Eingebauter Sperrkreis, schwenkbare Antennenankopplung. UKW-Teil als Super-Audion. Beleuchtete Flutlichtskala.

  Auch mit Trockengleichrichter, siehe Trumpf 52.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 99.50 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Lange, Schaltungen der Funkindustrie (Band 6, Seite 55)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Udo Janssen. See "Data change" for further contributors.
