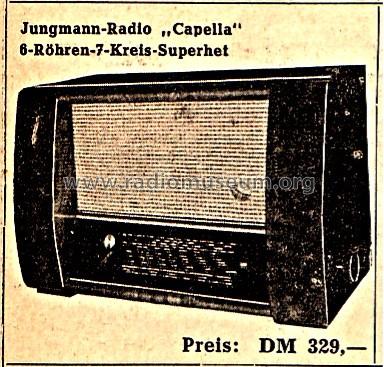

Capella 7612 W
Jungmann, Alfio; Eislingen-Fils/Württemberg und Hamburg
- Country
- Germany
- Manufacturer / Brand
- Jungmann, Alfio; Eislingen-Fils/Württemberg und Hamburg
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15199
-
- Brand: Universum
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 487 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Ready for FM, has Broadcast, Long Wave, Short wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capella 7612 W - Jungmann, Alfio; Eislingen-
- Dimensions (WHD)
- 520 x 340 x 270 mm / 20.5 x 13.4 x 10.6 inch
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Price in first year of sale
- 296.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb
