• Country
• Germany

• Manufacturer / Brand
• Jungmann, Alfio; Eislingen-Fils/Württemberg und Hamburg

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114698

• • Brand: Universum

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

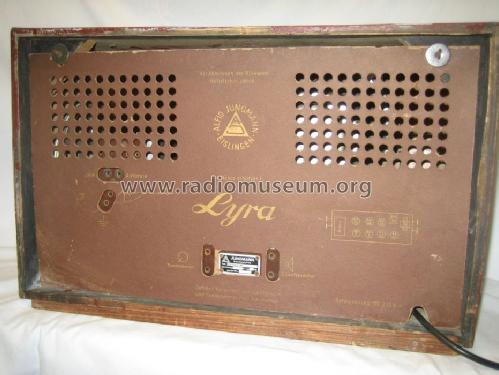

• Model: R-Lyra-10 6611W - Jungmann, Alfio; Eislingen-

• Notes
• Die Nummer "Schaltplan 6611W" ist so angeführt und könnte eine Schaltplan-Nummerierung sein?

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 20 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Jungmann, Alfio; Eislingen-Fils/Württemberg und Hamburg
