• Country
• Germany

• Manufacturer / Brand
• Jungmann, Alfio; Eislingen-Fils/Württemberg und Hamburg

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182213

• • Brand: Universum

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

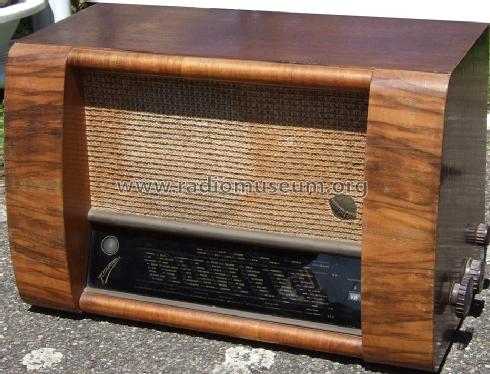

• Model: Universum 7612W - Jungmann, Alfio; Eislingen-

• Shape
• Tablemodel, low profile (big size).

• Notes
• Jungmann Universum 7612W;
  KW 50...16 m.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
