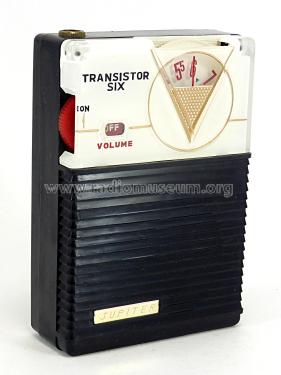

Transistor Six 6 T-250
Jupiter (General Export Co.); San Francisco, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Jupiter (General Export Co.); San Francisco, CA
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 108155
320199615398
320199615398
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor Six 6 T-250 - Jupiter General Export Co.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Different body colors known, earphone jack.
Similar to the models reported under Hi-Delity 6T-250.
Made in Japan
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
