- Country
- Switzerland
- Manufacturer / Brand
- Jura; La Chaux-de-Fonds (eigentlich Zürich)
- Year
- 1942–1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12133
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org

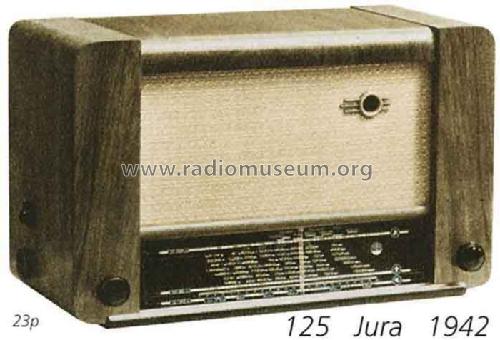

- Model: 125 - Jura; La Chaux-de-Fonds
- Dimensions (WHD)
- 540 x 330 x 235 mm / 21.3 x 13 x 9.3 inch
- Notes
- Sch=448A;
- Price in first year of sale
- 470.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die Tungsram-Tabellen führen das Modell auf.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
