• Country
• Switzerland

• Manufacturer / Brand
• Jura; La Chaux-de-Fonds (eigentlich Zürich)

• Year
• 1943–1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12139

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

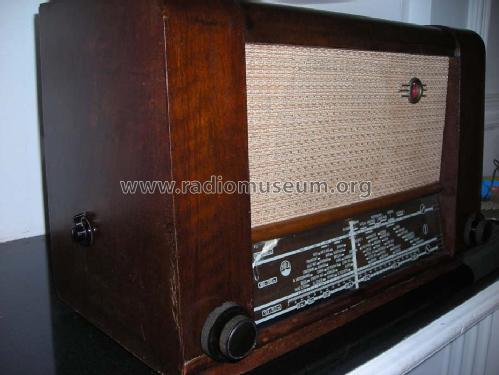

• Model: 126A - Jura; La Chaux-de-Fonds

• Dimensions (WHD)
• 540 x 337 x 239 mm / 21.3 x 13.3 x 9.4 inch

• Notes
• Sch=447A;

• Price in first year of sale
• 495.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.

• Picture reference

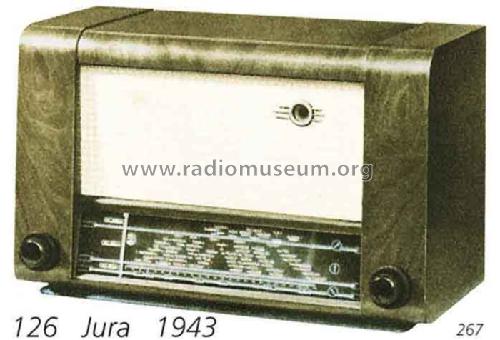

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
