• Country
• Switzerland

• Manufacturer / Brand
• Jura; La Chaux-de-Fonds (eigentlich Zürich)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12120

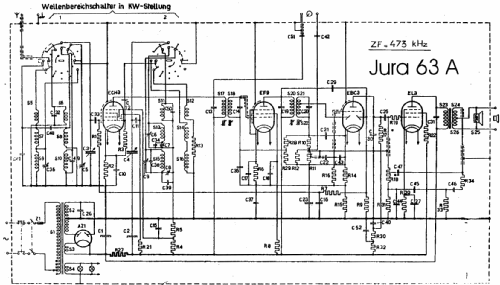

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 469 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 63 - Jura; La Chaux-de-Fonds

• Dimensions (WHD)
• 530 x 307 x 225 mm / 20.9 x 12.1 x 8.9 inch

• Notes

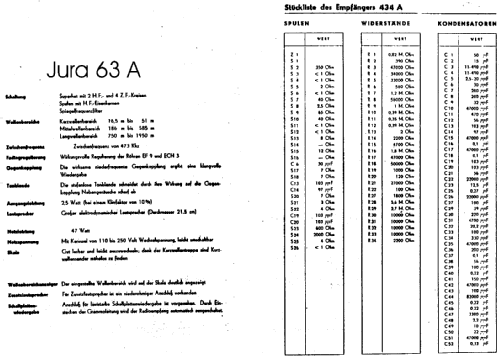

• Sch=434A;

• Price in first year of sale
• 310.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.
