J151U /19 /32

Jura; La Chaux-de-Fonds (eigentlich Zürich)

Data
Forum
Pictures
Collections

  • Year
  • 1941 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 277172

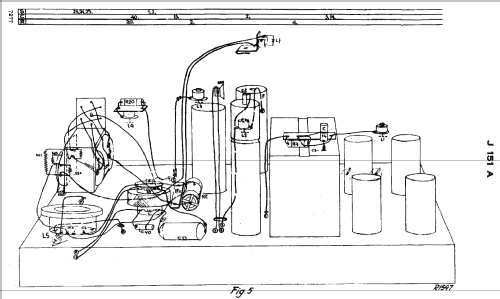

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s); Export model
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: J151U /19 /32 - Jura; La Chaux-de-Fonds
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 350 x 235 x 166 mm / 13.8 x 9.3 x 6.5 inch
  • Notes
  • 3 Band reception:
    • LW: 722 - 2000 m.
    • BC: 186 - 585 m.
    • SW: 16,5 - 51 m.
    Tuning scale light bulbs type: 8092D (10V, 200mA).
    Loudspeaker Philips type 9648 or 9676. No connectors for external loudspeaker or pick-up.

    This model is comparable with Siera S151U and Philips 312H.

    Mains connected to the chassis !
  • Net weight (2.2 lb = 1 kg)
  • 5.9 kg / 12 lb 15.9 oz (12.996 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Dirk Bladt. See "Data change" for further contributors.
