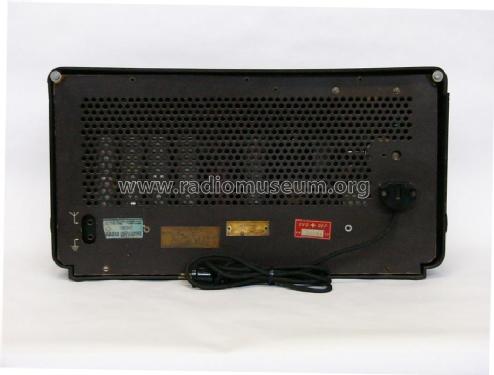

J50HU (50HU)
Jura; La Chaux-de-Fonds (eigentlich Zürich)
- Country
- Switzerland
- Manufacturer / Brand
- Jura; La Chaux-de-Fonds (eigentlich Zürich)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228637
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-125; 200-225 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: J50HU - Jura; La Chaux-de-Fonds
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 486 x 260 x 188 mm / 19.1 x 10.2 x 7.4 inch
- Notes
-
Current regulator C1 is used for a mains voltage of 200-225V, C9 for a mains voltage of 110-125 V.
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
