- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1975 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156435

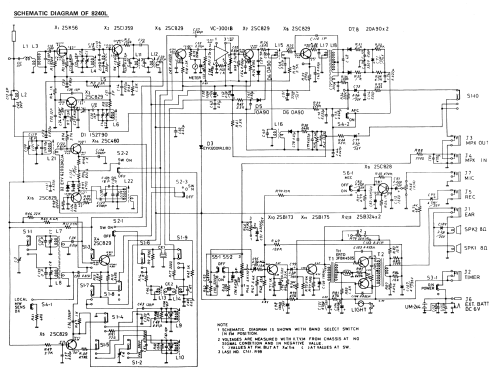

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / C: 4 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 12 cm = 4.7 inch
- Power out
- 1.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

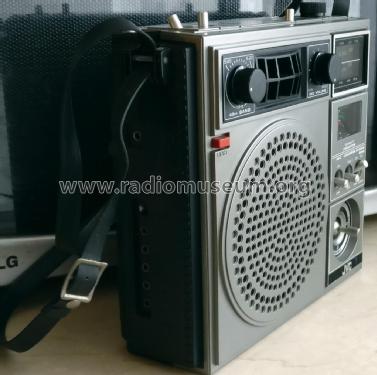

- Model: 8240L - JVC - Victor Company of Japan,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 0 x 208 x 77 mm / 0 x 8.2 x 3 inch
- Notes
- Zusätzlicher KW-Bereich (49m-Band), über separaten Knopf abstimmbar, über Schalter wählbar, Klangregelung über "Joy-Stick" (Höhen & Bass), Loudness, AFC, Mikrofon-Eingang, stufenlos einblendbar, DX/Local-Schalter, Schalter für Skalenbeleuchtung, Kombiinstrument für Signalstärke/Batterieladezustand, folgende seitliche Anschlüsse: Mikrofon, Netzteil (6 Volt=), Ohrhörer, Timer, Rec, MPX in/out. 1 IC, 1 FET, 14 Transistoren.
- Net weight (2.2 lb = 1 kg)
- 1.550 kg / 3 lb 6.6 oz (3.414 lb)
- Mentioned in
- -- Original-techn. papers. (JVC Service Manual No. 1287, March 1975)
- Author
- Model page created by Michael Schott. See "Data change" for further contributors.
