- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1974 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85615
vendu
Vendu

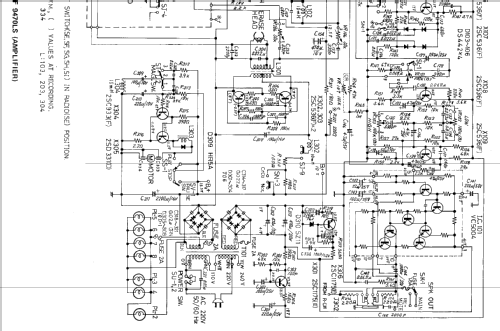

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 37
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 220; 240 Volt
- Power out
- 15 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 9470LS - JVC - Victor Company of Japan,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 436 x 290 x 148 mm / 17.2 x 11.4 x 5.8 inch
- Notes
- Cassette deck 4 tracks, 2 channel stereo. 1 Fet + 4 ICs.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Ervé Leclercq. See "Data change" for further contributors.
