• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 143060

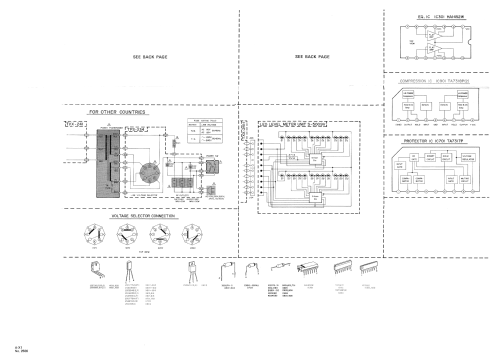

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 62 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

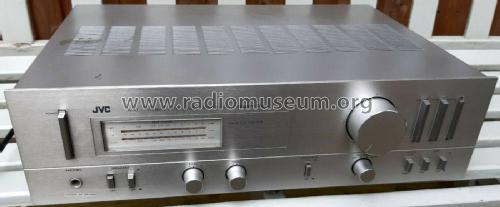

• Model: A-X1 - JVC - Victor Company of Japan,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 120 x 329 mm / 16.5 x 4.7 x 13 inch

• Notes
• Super-A Verstärker mit 31 Watt pro Kanal an 8 Ohm.
  12-LED-Spitzenleistungsanzeiger.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
