• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1978

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 186534

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - Is a Headphone or Earphone

• Power out
• 0.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

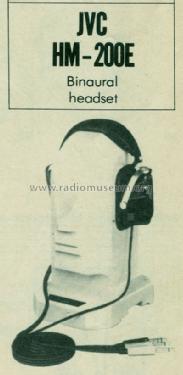

• Model: Binaural headset HM-200E - JVC - Victor Company of Japan,

• Notes
• 8 Ohm, 500 mW, 20 Hz-20 KHz,96 dB/mW. The HM-200E is designed for use with JVC CD1635 Mark II and CD1636 portable stereo recorders or with the JVC RC828LB stereo radio recorder, which has bi-phonic playback facilities.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Literature/Schematics (1)
• Trader Service Sheet 1978.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
