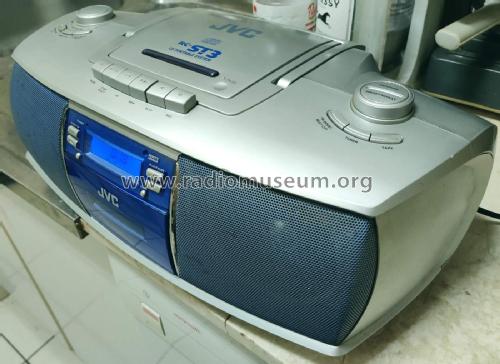

CD Portable System RC-ST3

• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 2003

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338070

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 60Hz, 120 / D: 8 × 1.5 / 12 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CD Portable System RC-ST3 - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 440 x 168 x 241 mm / 17.3 x 6.6 x 9.5 inch

• Notes

• Portable Radio with CD player & Cassette Recorder.
  Remote Control unit: RM-SRCST3 J

  Made in China

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)
