CD Portable System RS-WP1WT

• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 2001 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355779

• Picture

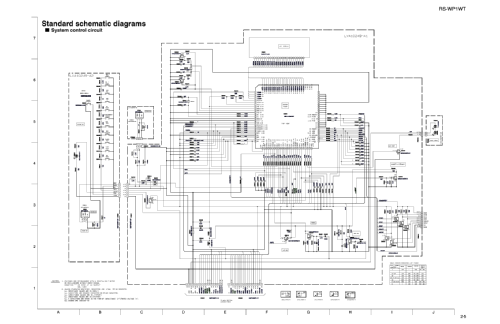

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Batteries / addl. power jack / R20: 8 × 1.5 / 12 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Power out
• 26 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CD Portable System RS-WP1WT - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 411 x 456 x 234 mm / 16.2 x 18 x 9.2 inch

• Notes

• The JVC CD Portable System RS-WP1WT combines a two band PLL radio receiver with CD-player and auto reverse cassette deck.

  Accessories:

  • AC-Adaptor AA-R1209 (60 Hz, 120 V)
  • Remote control RM-SRSWP1J

  Made in Malaysia

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
