• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 2005

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 318319

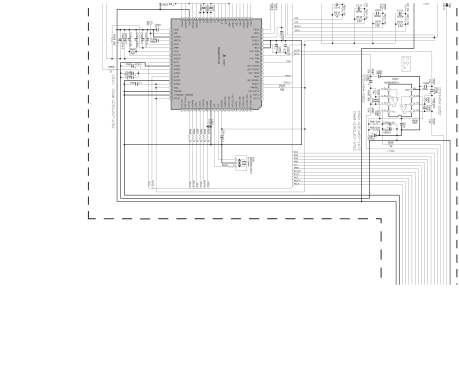

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 14,4 (11-16) Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 68 W (180 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: CD Receiver for Car Use KD-G161 - JVC - Victor Company of Japan,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 182 x 52 x 150 mm / 7.2 x 2 x 5.9 inch

• Notes

•  JVC  CD Receiver for Car Use KD-G161

  • - Continuous Power Output (RMS) 4 x 17 W @ 4 Ω
  • - Maximum Power Output 4 x 45 W
  • - CD Player
  • - Detachable front panel (Panel size 188 x 58 x 11 mm.)

  Made in Indonesia

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
