• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1980 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 164697

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220-240; 240-250/ 12; 10 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

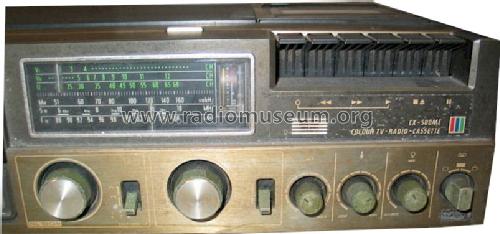

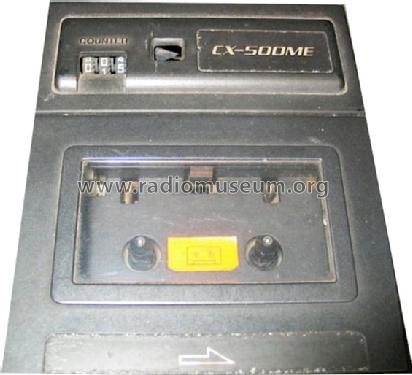

• Model: Colour TV Radio Cassette CX-500ME - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 440 x 140 x 340 mm / 17.3 x 5.5 x 13.4 inch

• Notes
• JVC CX-500ME Colour TV Radio Cassette (ME= Middle East?);
  12 cm /4,8" PAL/SECAM East colour TV, CCIR B/C/D/I/G/K European multistandard electronic VHF/UHF tuner,
  SW: ~6 - 18 MHz, MW and FM radio, AFC, tone control, manual degausing, tape counter, built-in microphone, built-in telescopic antenna or ext. IEC in, accu charger, ext. 12 VDC in, mic. & rem. in, DIN I/O, earphones terminal, beat cut switch.
