• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1980 ??

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 255832

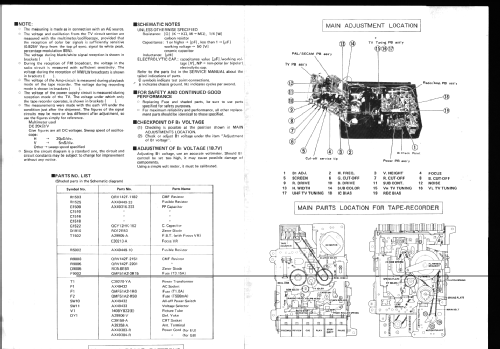

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 110; 127; 220; 240 / 12 / 10 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Colour TV-Radio-Cassette CX-500GB - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• JVC CX-500GB Colour TV Radio Cassette.

  12 cm /4,8" PAL/SECAM TV, CCIR B/G/I/D/K standard electronic VHF/UHF tuner.

  LW, MW and FM radio, AFC, tone control, manual degausing, tape counter, built-in microphone, built-in telescopic, accu charger, ext. 12 VDC in, mic. & rem. in, earphones terminal, beat cut switch.

  Compare with other CX-500xx European & US versions.

  The difference between the version >CX-500ME< & >CX-500GB< is the SW instead of the LW radio band!

  Made in Japan.
