Compact Component System CA-MXJ570

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 2002 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 232033

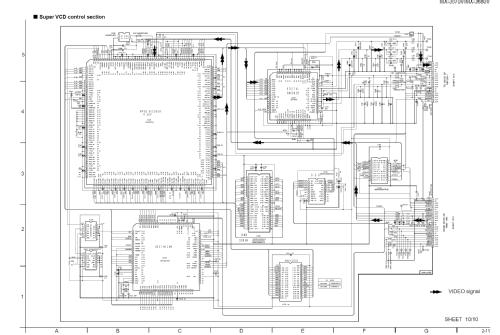

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Component System CA-MXJ570 - JVC - Victor Company of Japan,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes

  • - Lector de CDs y Video CD

    - Doble pletina autoreverse

    - Imput Phono y AUX

    - Ouput Digital

  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
